Designed with energy efficiency in mind, MVC Flow Essential ensures stable performance with a low 5.25V max input. This minimal power requirement makes it ideal for lightweight aerial platforms where battery life is critical.
| Parameter | Value |
| Max Input Voltage | 5.25V |

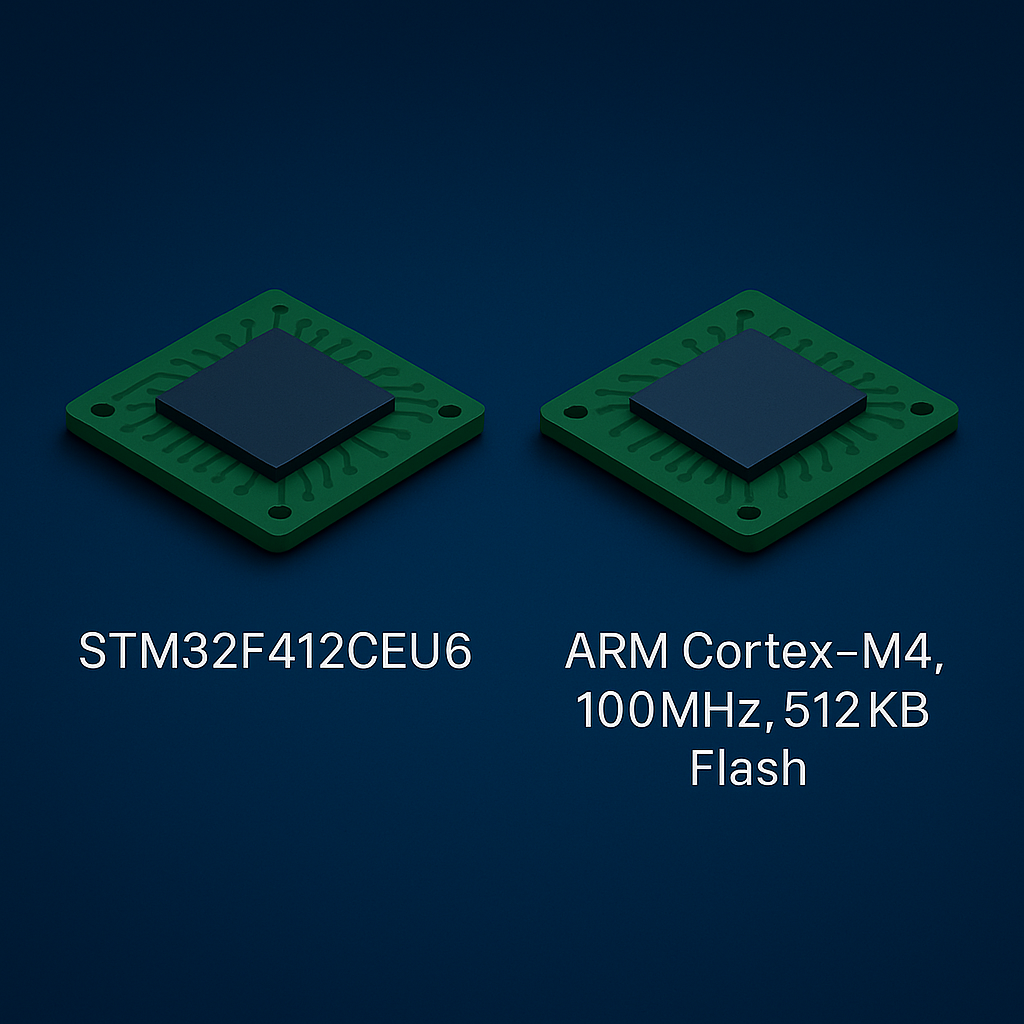

The STM32F412CEU6 processor delivers precise and reliable real-time data processing, empowering UAV systems with immediate response to motion and environmental input, all while maintaining an ultra-low power footprint.
By integrating advanced motion, optical flow, and distance sensors, MVC Flow Essential ensures superior navigation, obstacle awareness, and hover accuracy. The IR illumination further enhances performance in low-contrast and poorly lit surfaces.
Sensor Type | Model |
Accel/Gyro | ICM-42688-P |
Optical Flow | Pixart PAW3902JF-TXQT |
Distance | Broadcom AFBR-S50LV85D |
Illumination | 850nm Infrared (IR) LED |
Equipped with a debug port and CAN communication port, the unit simplifies integration and data transmission. These standard interfaces support smooth operation with companion autopilot systems and diagnostic tools.
Debug Port | For diagnostics and firmware access |
CAN Port | Real-time communication connection |
MVC Flow Essential is built for micro aerial systems. Its compact dimensions and robust temperature range support operation in demanding conditions without sacrificing reliability or flight endurance.
Parameter | Value |
Weight | 2.2 g |
Operating & Storage Temp | -20°C to +85°C |
Dimensions | 15mm (W) × 35mm (L) |
